Pedal assistance controls

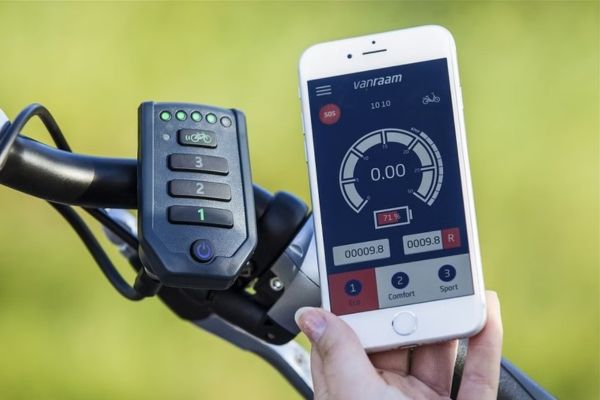

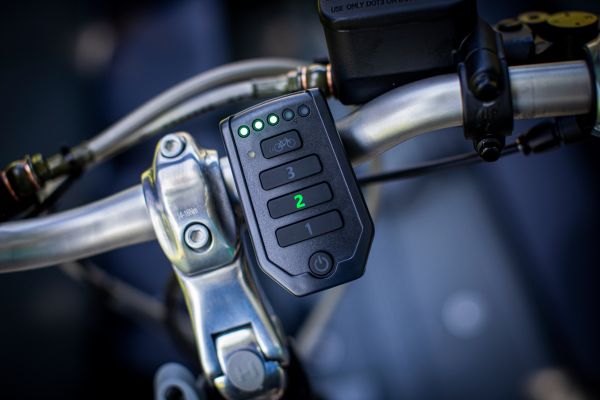

When cycling with pedal assistance, it is important to turn on the smart display (located on the handlebar). The smart display of the pedal assistance has a number of buttons and indicator lights:
Turn the system on or off by pressing the on / off button.
-
1: Pedal assistance stage 1 (Eco)
The system will start up automatically in this setting. Only use this setting when you want a low level of assistance and a high range.
-
2: Pedal assistance stage 2 (Comfort)
You can switch between the different stages according to your liking. Setting 2 will give you more assistance, but will reduce the range.
-
3: Pedal assistance stage 3 (Power)
You can switch between the different stages according to your liking. Setting 3 will give you a lot of assistance and will get you up to speed quickly. However, this also means that the range will be lower.
-
Bicycle symbol: start-up help
With the start-up help you get support from the system without pedaling. If you operate the start-up help while cycling, you get the maximum support of this mode, so you don't have to apply any pedaling power.
The colored indicator lights at the top of the smart display show the status of the battery. This indication consists of five green LEDs of which the leftmost one can turn red when the battery is almost empty. When the battery is empty, the red LED flashes. When the battery is fully charged all five green LEDs light up, when two green LEDs light up the battery is 50% charged.
